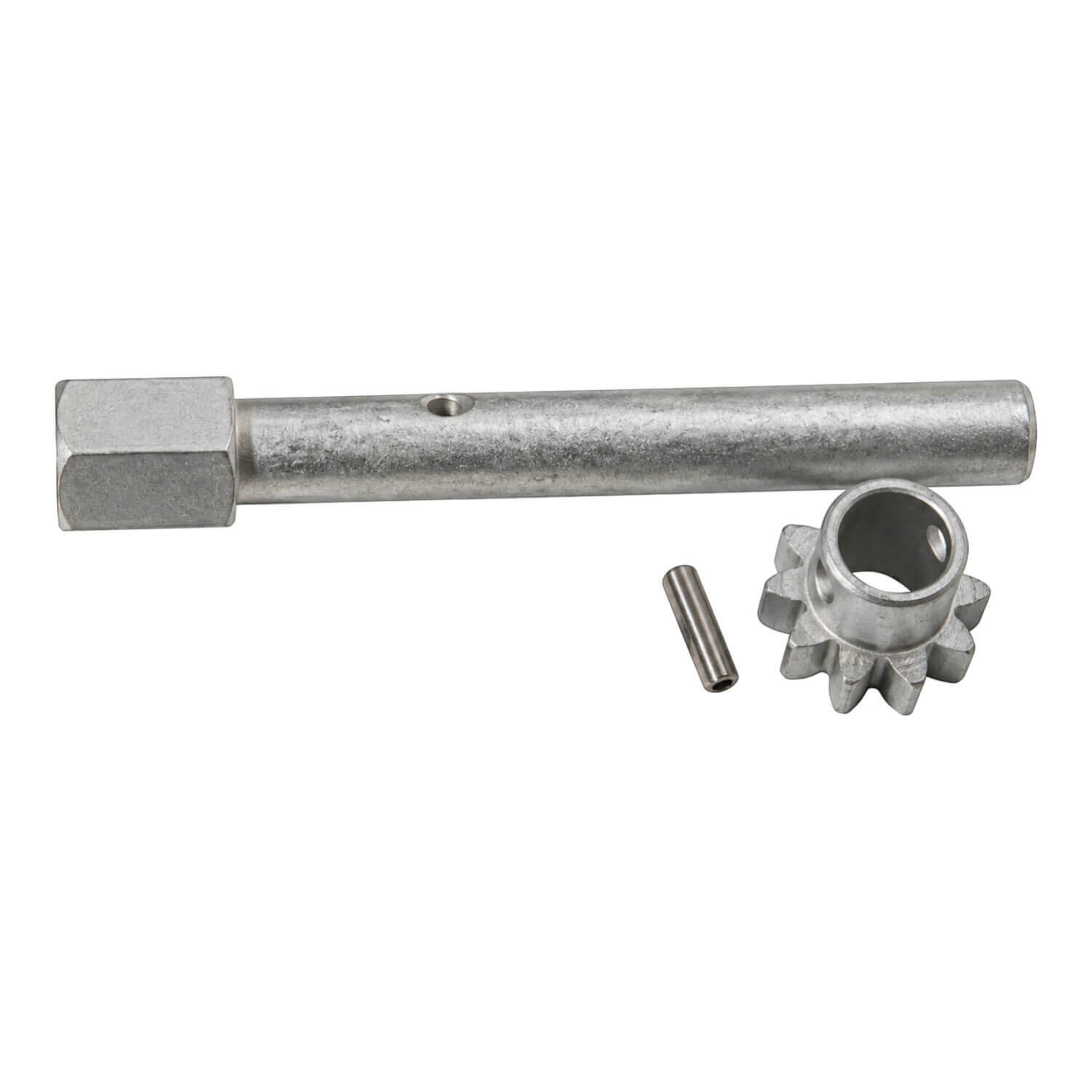

Axis 5:1 2 Speed Winch Gear and Shaft Assembly
Service the drive assembly on an Axis 5:1 two-speed winch with this replacement gear and shaft assembly. The two-speed designation is essential when distinguishing it from a single-speed 5:1 model.
Compare the original shaft and gear arrangement with the required service part. This listing covers the gear-and-shaft assembly rather than a replacement handle. Keep the winch’s model and speed configuration together when identifying parts for a repair.
Choosing and using this product
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Before placing the order, compare this product’s stated details with the part or installation in front of you. Keep any compatible model reference and the selected product code together. This gives you a clear reference for fitting enquiries and for matching a future replacement to the same arrangement.
Product details
- Replacement gear and shaft assembly for Axis 5:1 2-speed winches.
- Product code: 811287
