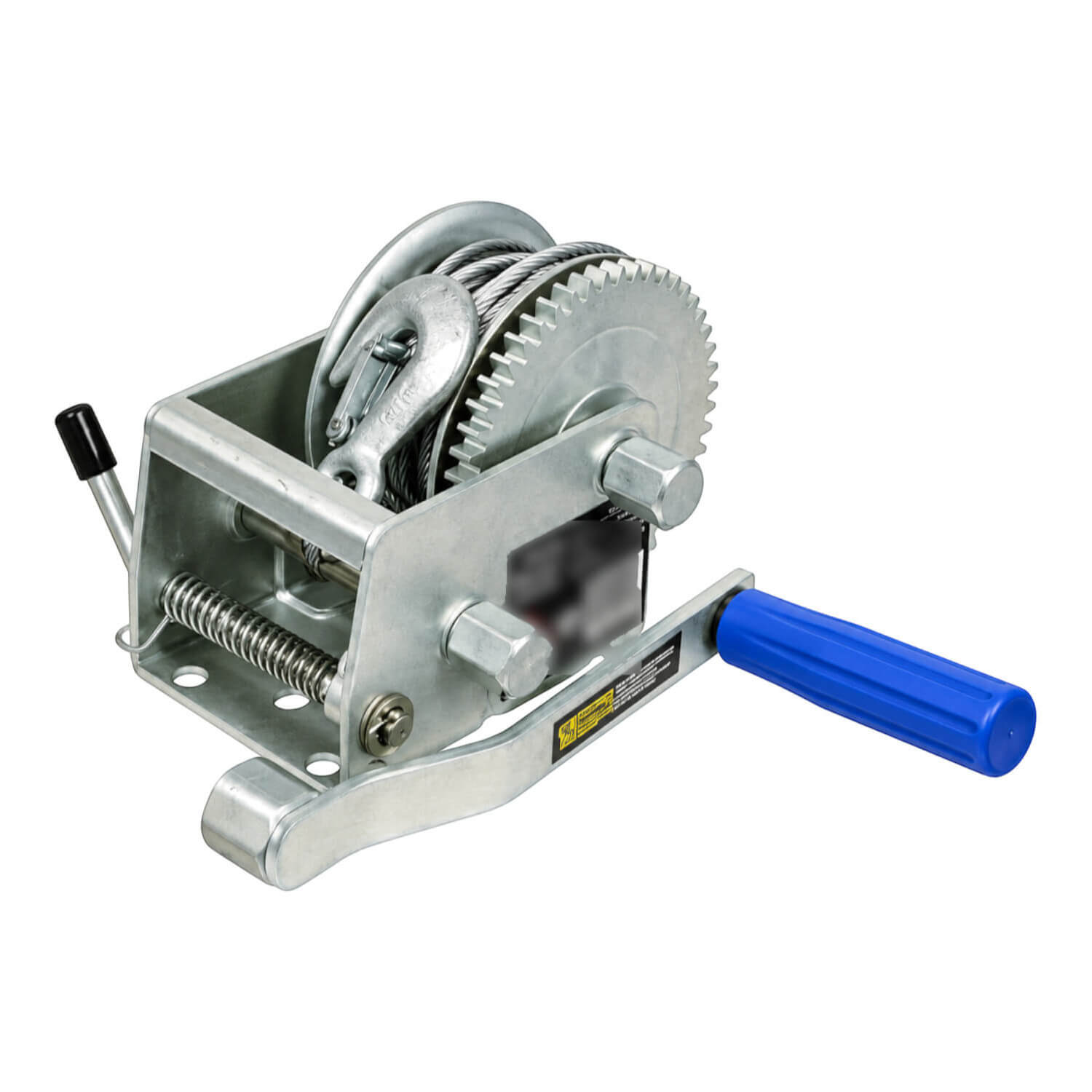

Axis 5:1:1 2 Speed Hand Winch 7.5m x 5mm Wire Cable with Snap Hook
Equip a suitable trailer with the Axis 5:1:1 2 speed hand winch in this specific 7.5m x 5mm wire cable with snap hook configuration. Its stated winching capacity is 700kg, and the range is intended for medium boats and general winching. Matching the ratio and supplied line arrangement makes it easier to select the right version for your boat-loading setup.
The supplied 7.5m x 5mm wire cable with snap hook identifies both the reach and the connection format of this version. Compare the cable diameter with the intended winch arrangement and check that its length suits the retrieval path. Keep the hook type in mind when matching the boat attachment point.
The two-speed design combines the stated geared ratio with a 1:1 direct-winding option. A removable hex-drive handle lets you select the appropriate drive position. The direct option is part of the operating flexibility of this model, rather than a separate electric drive or motor accessory.
Before replacing an existing winch, compare the mounting arrangement, handle clearance and pulling-line path. A stated winching capacity is not the same specification as a boat’s total weight, and it does not establish a lifting rating. Select the complete installation for the intended loading task rather than using the model name alone.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Product details
- Axis hand winch.
- Ratio/speeds: 5:1:1 2 Speed.
- Winching capacity: 700kg.
- Removable hex-drive handle for quick 1:1 direct winching.
- Suits medium boats and general winching.
- Supplied configuration: 7.5m x 5mm Wire Cable with Snap Hook.
- Product code: 811216
