AXIS 4 Bow Bimini 1.8 2.0m Boat Width 1.3m High Grey

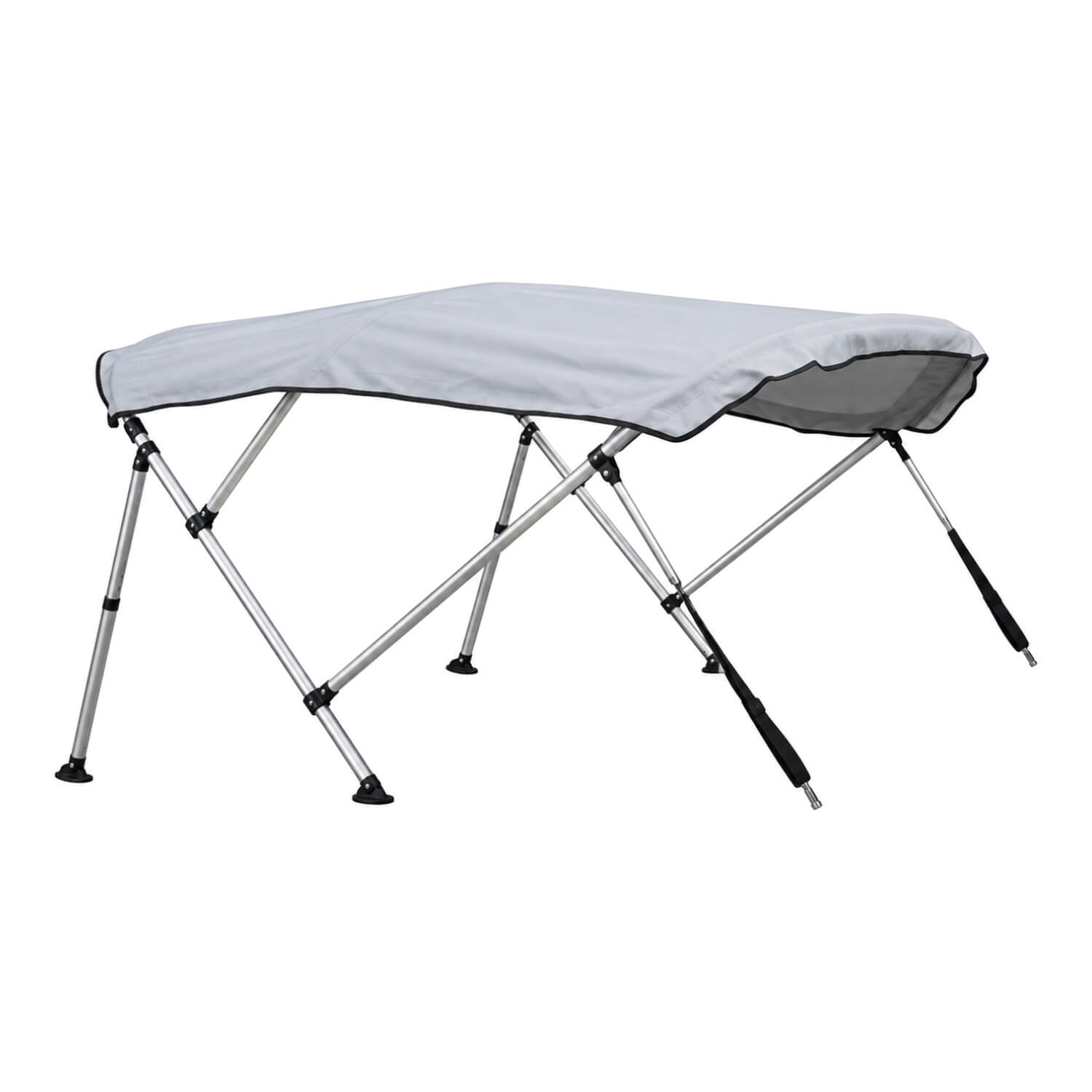

The AXIS 4 Bow Bimini 170814 pairs a grey canopy with a polished aluminium frame for a coordinated boat-top installation. Specified for a 1.8–2.0m mounting width, this version provides 2400mm of coverage and a 1.3m height above the mounting points.
A four-bow frame supports the 2400mm coverage length. This longer canopy format makes fore-and-aft placement an important part of selection: measure the area you want covered before deciding where the frame should mount.
Grey fabric gives this version a neutral finish, with black edging defining the canopy outline. The canopy is made from 100% polyester, and the curved frame uses polished 1-inch aluminium tubing. The flat-pack design is intended for straightforward assembly, with instructions supplied to guide the process.
For width, measure between the actual mounting points and compare the result with the 1.8–2.0m range. The boat’s maximum hull width alone does not establish the correct fit. The main mounting position is approximately beneath the centre of the canopy, so its location affects where the covered area falls.
Measure height vertically from the mounting point when checking the 1.3m frame dimension. This is not a measurement from the boat floor. The bimini height can be trimmed by up to 0.2m; work through the supplied instructions and your chosen mounting arrangement before altering the frame.
Rear support arms, a bimini storage sock and side mounts are included. AXIS specifies a maximum of 40 knots, approximately 75km/h, with the top fully open. Use the supplied assembly and fitting instructions when setting up the canopy and its supports.
Product details
- Model: AXIS 4 Bow Bimini 170814.
- Mounting-width range: 1.8–2.0m.
- Height above mounting point: 1.3m; trimming allowance up to 0.2m.
- Coverage length: 2400mm.
- Canopy: grey 100% polyester with black trim.
- Frame: polished 1-inch aluminium tubing.
- Includes rear support arms, storage sock, side mounts and assembly instructions.
- Fully open rating: 40 knots (approximately 75km/h).
