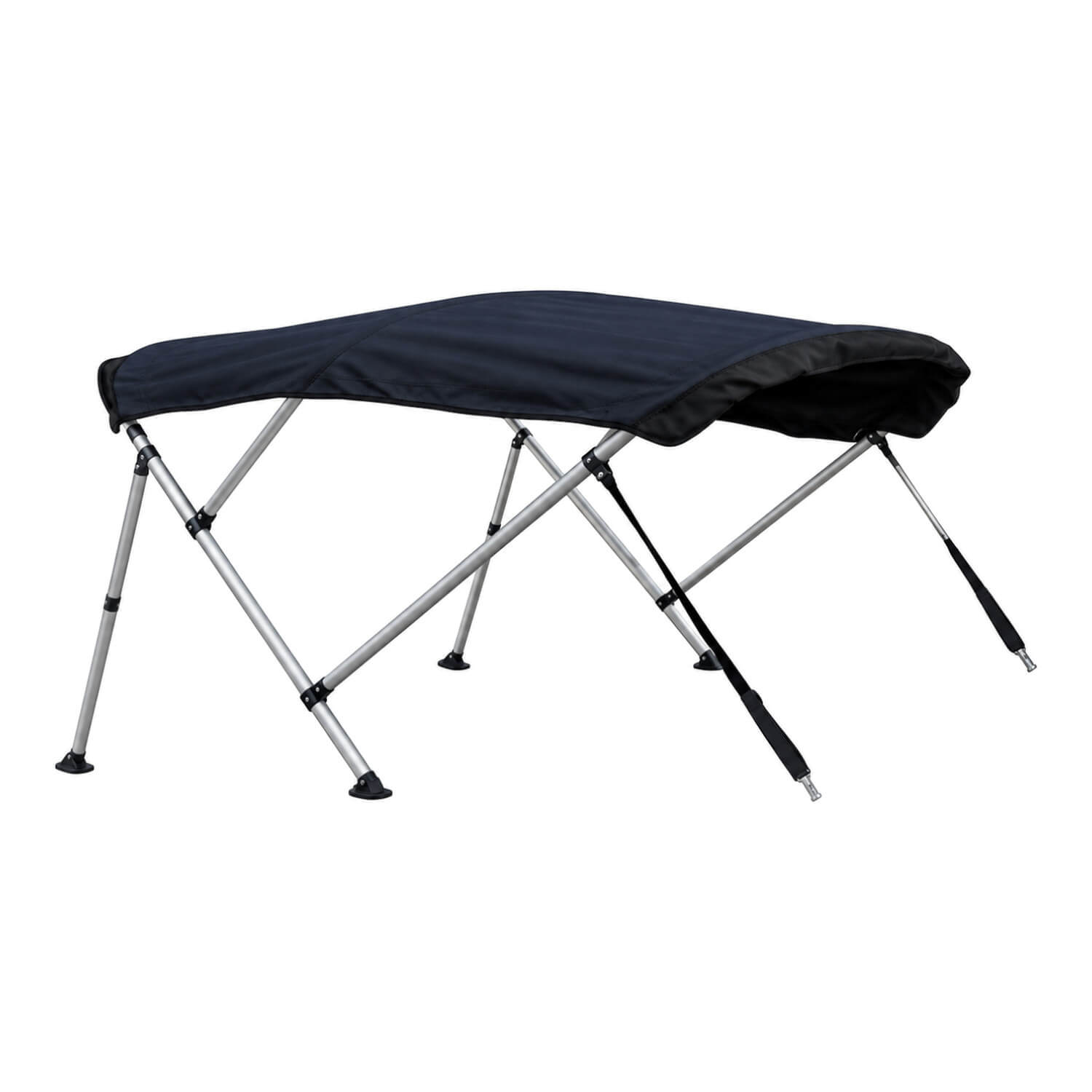

AXIS 3 Bow Bimini 1.5 1.7m Boat Width 1.3m High Black
Choose the black AXIS 3 Bow Bimini 170807B when your proposed mounting points measure 1.5–1.7m apart and you want 1800mm of canopy coverage. Its 1.3m height is measured above the mounting position, helping you compare this model with the space available on your boat.
The three-bow configuration gives you an 1800mm coverage length. Use that measurement to plan the position of the canopy over your chosen area, while checking that the support locations work with the boat’s layout.
Black fabric and matching black trim give this variant a consistent dark finish across the canopy. The canopy is made from 100% polyester, and the curved frame uses polished 1-inch aluminium tubing. The flat-pack design is intended for straightforward assembly, with instructions supplied to guide the process.
For width, measure between the actual mounting points and compare the result with the 1.5–1.7m range. The boat’s maximum hull width alone does not establish the correct fit. The main mounting position is approximately beneath the centre of the canopy, so its location affects where the covered area falls.
Measure height vertically from the mounting point when checking the 1.3m frame dimension. This is not a measurement from the boat floor. The bimini height can be trimmed by up to 0.2m; work through the supplied instructions and your chosen mounting arrangement before altering the frame.
Rear support arms, a bimini storage sock and side mounts are included. AXIS specifies a maximum of 40 knots, approximately 75km/h, with the top fully open. Use the supplied assembly and fitting instructions when setting up the canopy and its supports.
Product details
- Model: AXIS 3 Bow Bimini 170807B.
- Mounting-width range: 1.5–1.7m.
- Height above mounting point: 1.3m; trimming allowance up to 0.2m.
- Coverage length: 1800mm.
- Canopy: black 100% polyester with black trim.
- Frame: polished 1-inch aluminium tubing.
- Includes rear support arms, storage sock, side mounts and assembly instructions.
- Fully open rating: 40 knots (approximately 75km/h).
