AXIS 2 Bow Bimini 1.3 1.5m Boat Width 1.3m High Grey
Plan a shaded area aboard your boat with the grey AXIS 2 Bow Bimini, code 170796. This flat-pack boat canopy combines a 1650mm coverage length with a 1.3–1.5m mounting-width range and a 1.3m frame height, giving you three clear measurements to check before choosing your top.
The two-bow layout provides a 1650mm covered length. Mark out that length over the area you want shaded, then consider where the main mounting points will sit in relation to the centre of the top.

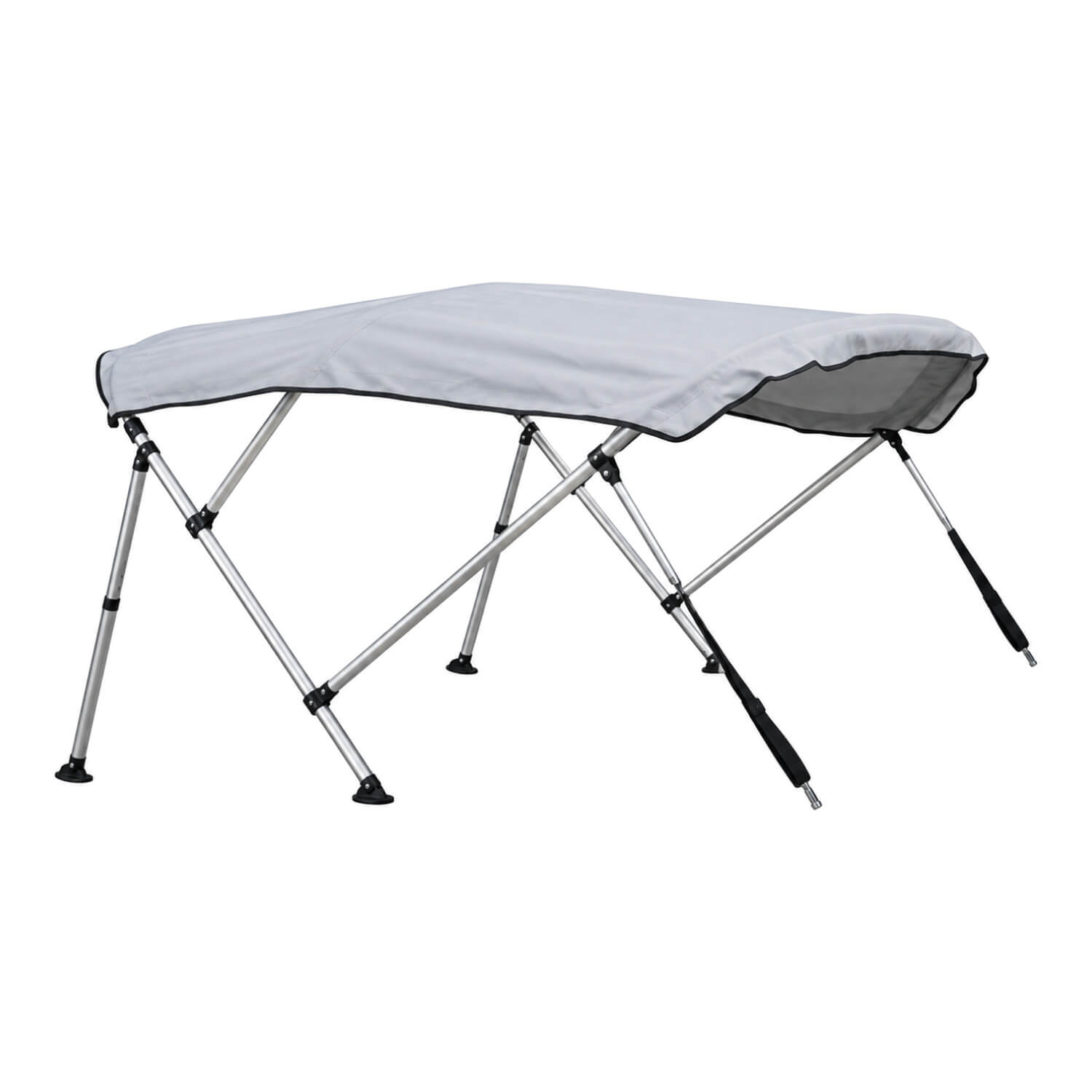

Grey fabric gives this version a neutral finish, with black edging defining the canopy outline. The canopy is made from 100% polyester, and the curved frame uses polished 1-inch aluminium tubing. The flat-pack design is intended for straightforward assembly, with instructions supplied to guide the process.
For width, measure between the actual mounting points and compare the result with the 1.3–1.5m range. The boat’s maximum hull width alone does not establish the correct fit. The main mounting position is approximately beneath the centre of the canopy, so its location affects where the covered area falls.
Measure height vertically from the mounting point when checking the 1.3m frame dimension. This is not a measurement from the boat floor. The bimini height can be trimmed by up to 0.2m; work through the supplied instructions and your chosen mounting arrangement before altering the frame.
Rear support arms, a bimini storage sock and side mounts are included. AXIS specifies a maximum of 40 knots, approximately 75km/h, with the top fully open. Use the supplied assembly and fitting instructions when setting up the canopy and its supports.
Product details
- Model: AXIS 2 Bow Bimini 170796.
- Mounting-width range: 1.3–1.5m.
- Height above mounting point: 1.3m; trimming allowance up to 0.2m.
- Coverage length: 1650mm.
- Canopy: grey 100% polyester with black trim.
- Frame: polished 1-inch aluminium tubing.
- Includes rear support arms, storage sock, side mounts and assembly instructions.
- Fully open rating: 40 knots (approximately 75km/h).
