Axis 15:1 Heavy Duty 3 Speed Winch Pawl Assembly Kit
Match a pawl repair to the Axis 15:1 heavy-duty three-speed winch with dedicated assembly kit 811272. This is the pawl kit specifically identified for that heavy-duty model.
The 15:1 designation and three-speed construction distinguish the intended winch from smaller Axis models. Verify the original assembly before replacement. Installing a new pawl kit does not alter the rated capacity of the complete winch or establish that other worn parts can remain in service.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Product details

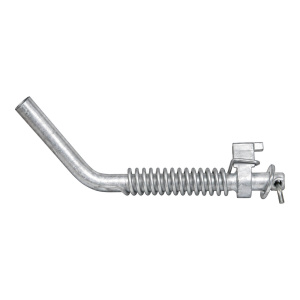

- Pawl assembly kit to suit Axis 15:1 heavy-duty 3-speed winch.
- Product code: 811272
