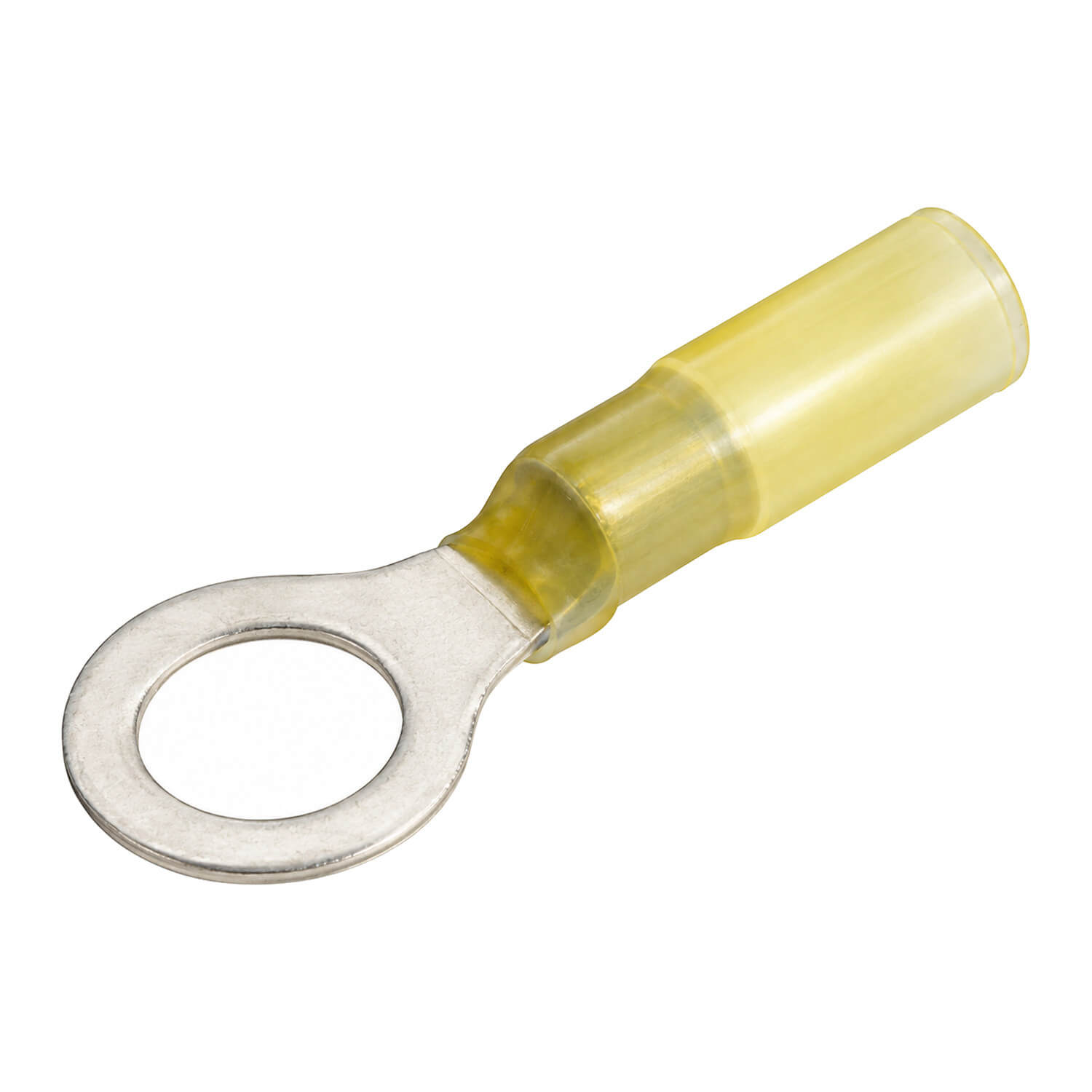

Aquapac - Yellow Eye Heatshrink Terminal - 9.5mm - 2 Pack
Make a matching electrical connection with this yellow heat-shrink eye terminal, part 916274. The 9.5mm eye opening is the connection-hole size. This selection contains 2 pieces.
The yellow terminal colour corresponds to the 5–6mm nominal cable range. The eye opening and cable fit are separate measurements, so match both the connection stud and conductor.
The Aquapac 2-piece retail pack provides a small quantity for a defined wiring task. Check the exact connection shape before selecting a replacement.
The heat-shrink format should be matched to the cable and application method. Check the completed fit before putting the circuit into service.
Choosing and using this product
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
Allow enough space around the terminal for cable routing, strain relief and future inspection. Check that a ring or fork will sit properly at the connection without fouling nearby hardware. Where a cover is used, confirm clearance with the connection assembled.
Keep unused terminals labelled by conductor range and connection size. Similar colours or shapes can conceal differences in stud-hole diameter or wire capacity. Recording the selected part code helps maintain consistency when another circuit or repair needs the same termination.
For this version, colour: Yellow. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Product: Aquapac - Yellow Eye Heatshrink Terminal - 9.5mm - 2 Pack
- Product code: 916274
- Aquapac retail pack of electrical terminals
- Pack Qty: 2
- Colour: Yellow.
- Nominal cable range: 5–6mm.
- Eye opening: 9.5mm.
- Conductor area listed for yellow quick-crimp sizing: 2.90–4.60mm².
