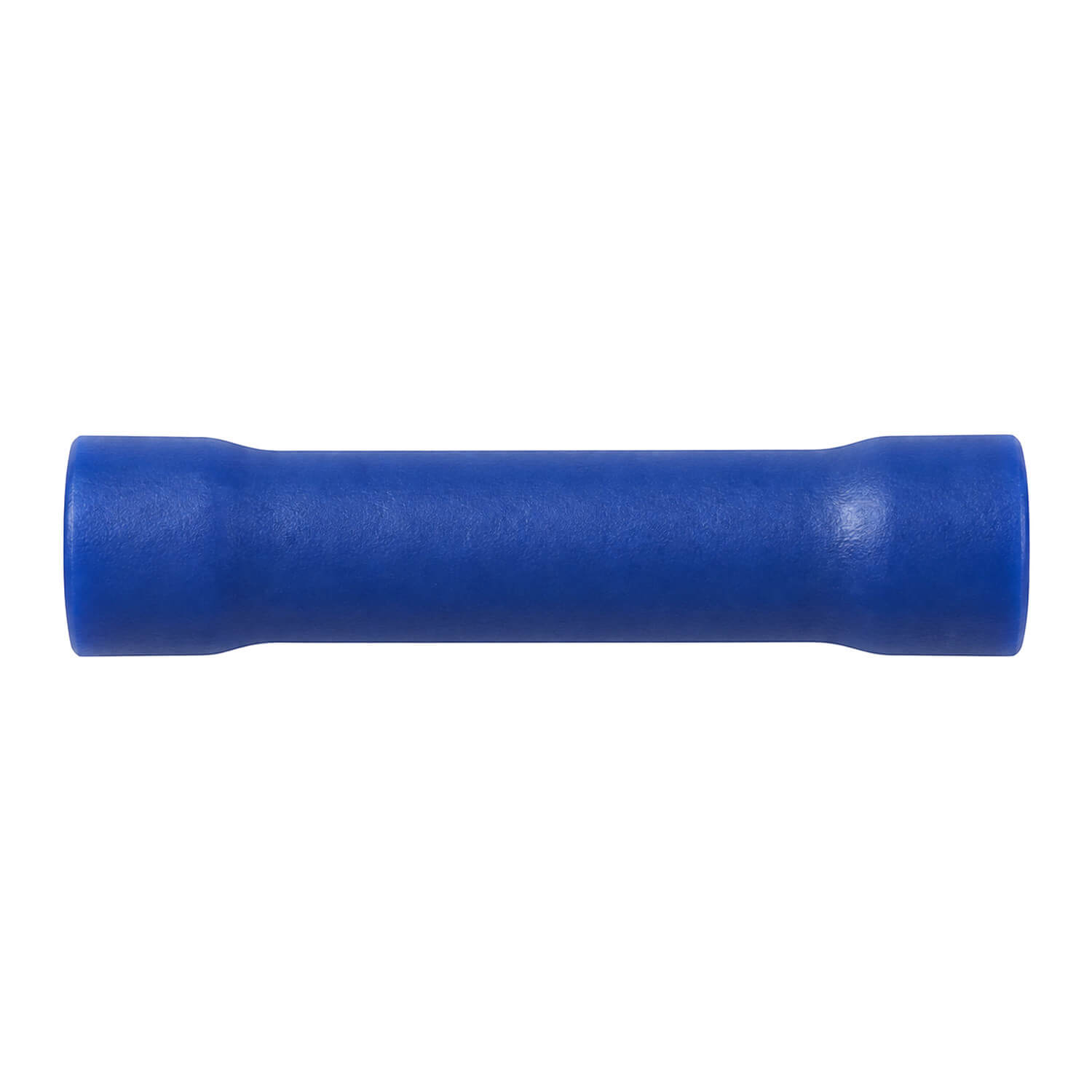

Aquapac - Blue Cable Joiner - 10 Pack
Make a matching electrical connection with this blue cable joiner, part 916156. This selection contains 10 pieces.
The blue terminal colour corresponds to the 4mm nominal cable range. Match the cable at each end before forming the joint.
The Aquapac 10-piece retail pack provides a small quantity for a defined wiring task. Check the exact connection shape before selecting a replacement.
Use suitable crimping tooling for the selected terminal and conductor. Colour alone does not establish the mating-contact dimensions, so check the actual connection geometry as well.
Choosing and using this product
Count each termination in the job before selecting the pack size. Include both ends where separate terminals are needed and keep the required styles distinct. A pack of identical terminals is convenient for repeated work, but it does not substitute for an assortment of different sizes.
For this version, colour: Blue. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Allow enough space around the terminal for cable routing, strain relief and future inspection. Check that a ring or fork will sit properly at the connection without fouling nearby hardware. Where a cover is used, confirm clearance with the connection assembled.
Keep unused terminals labelled by conductor range and connection size. Similar colours or shapes can conceal differences in stud-hole diameter or wire capacity. Recording the selected part code helps maintain consistency when another circuit or repair needs the same termination.
Use the installation method and tooling intended for the terminal construction. Check the wire preparation and completed connection in accordance with the relevant instructions. Heatshrink, insulation and the metal contact perform different functions, so each part of the joint needs to suit the application.
Product details
- Product: Aquapac - Blue Cable Joiner - 10 Pack
- Product code: 916156
- Aquapac retail pack of electrical terminals
- Quick-crimp terminal
- Pack Qty: 10
- Suitable cable size: 4mm cable (1.84mm sq)
- Colour: Blue.
- Nominal cable range: 4mm.
- Conductor area listed for blue quick-crimp sizing: 1.84mm².
