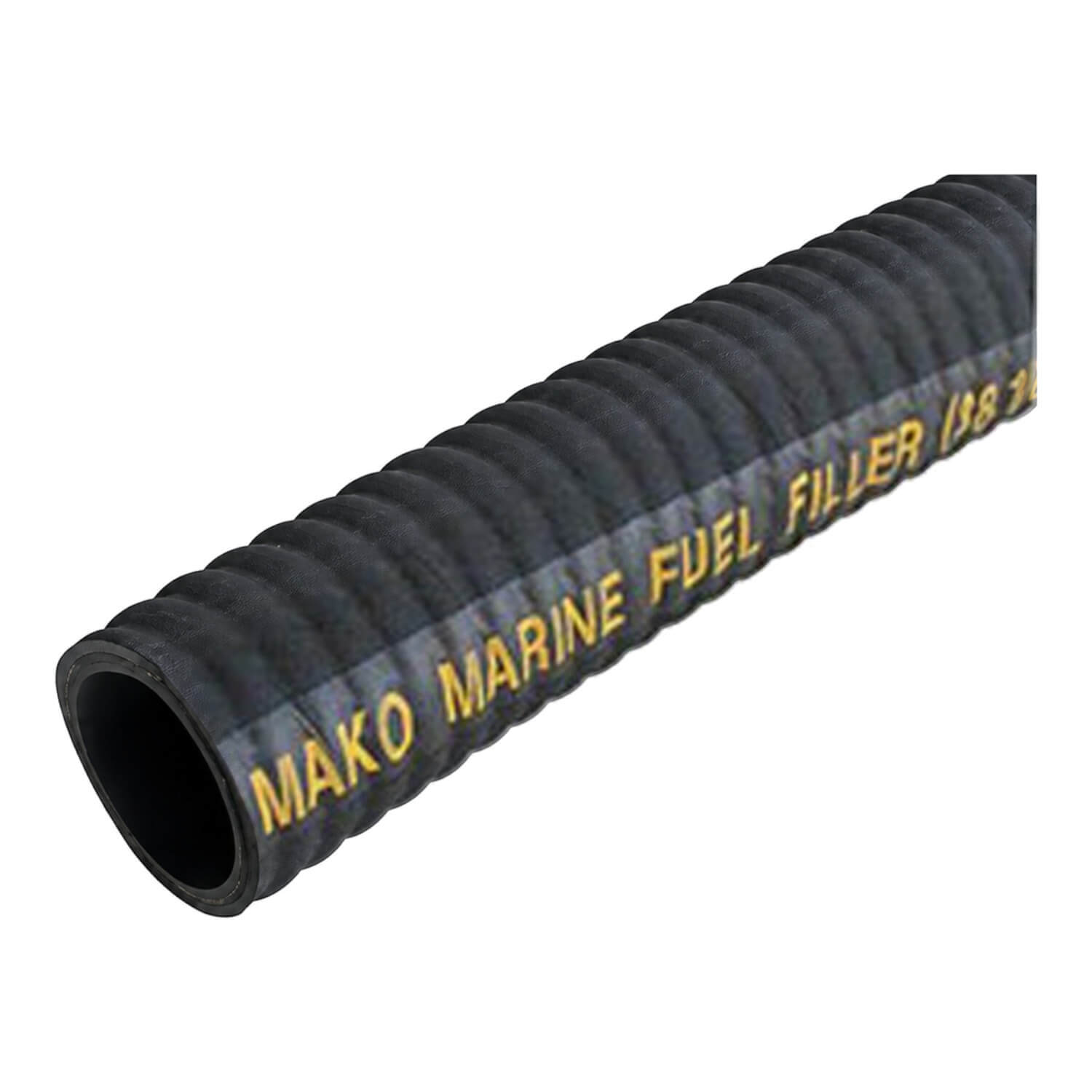

A2 Marine Fuel Fill Hose - 1 1/2” (38mm) - 50Ft Length
Choose this Type A2 marine hose for fuel-tank filling connections using unleaded fuel. Product 387624 is the 1 1/2 inch (38 mm) version, supplied 50 ft length. Matching the hose duty and diameter helps distinguish it from other fuel-system hoses.
Its flame-retardant cover and reinforced construction are intended for the stated marine fuel application. A black nitrile (chemigum) tube is combined with two-ply synthetic braid reinforcement and a wire helix.
The operating temperature range is -30°C to 90°C. The hose meets the US Coast Guard Type A2 requirements under SAE J1527. Use the specified type when checking the requirements for your installation.
This code is sold 50 ft length. Check the total length required before choosing this fixed-length option.
Match the hose to the connection diameter and its intended feed, vent or filling duty. A larger diameter alone does not establish that one hose type can replace another. Check routing and access at the tank connections before installation.
Choosing and using this product
Retain the part code and any compatible equipment references with the boat’s maintenance records. That makes later filter or hose replacements easier to identify. When several engines or tanks are involved, label spare parts so different connector styles are not confused.
Match the component to the fuel system and the exact connection being serviced. Hose size, thread form and engine-side or tank-side fitting style can differ between otherwise similar products. Use the stated model references rather than relying on a familiar connector shape.
Review the listed contents before planning the job. A connector, hose assembly, primer bulb and tank each cover a different part of the system. Determine which adjoining components are already present and which are expressly included with this product.
Product details
- Type: A2
- Size: 1 1/2 inch (38 mm)
- Sale length: 50 ft length
- Tube: black nitrile (chemigum)
- Cover: flame-retardant
- Reinforcement: two-ply synthetic braid with wire helix
- Temperature range: -30°C to 90°C
- Specification: USCG / SAE J1527 Type A2
- Product code: 387624
