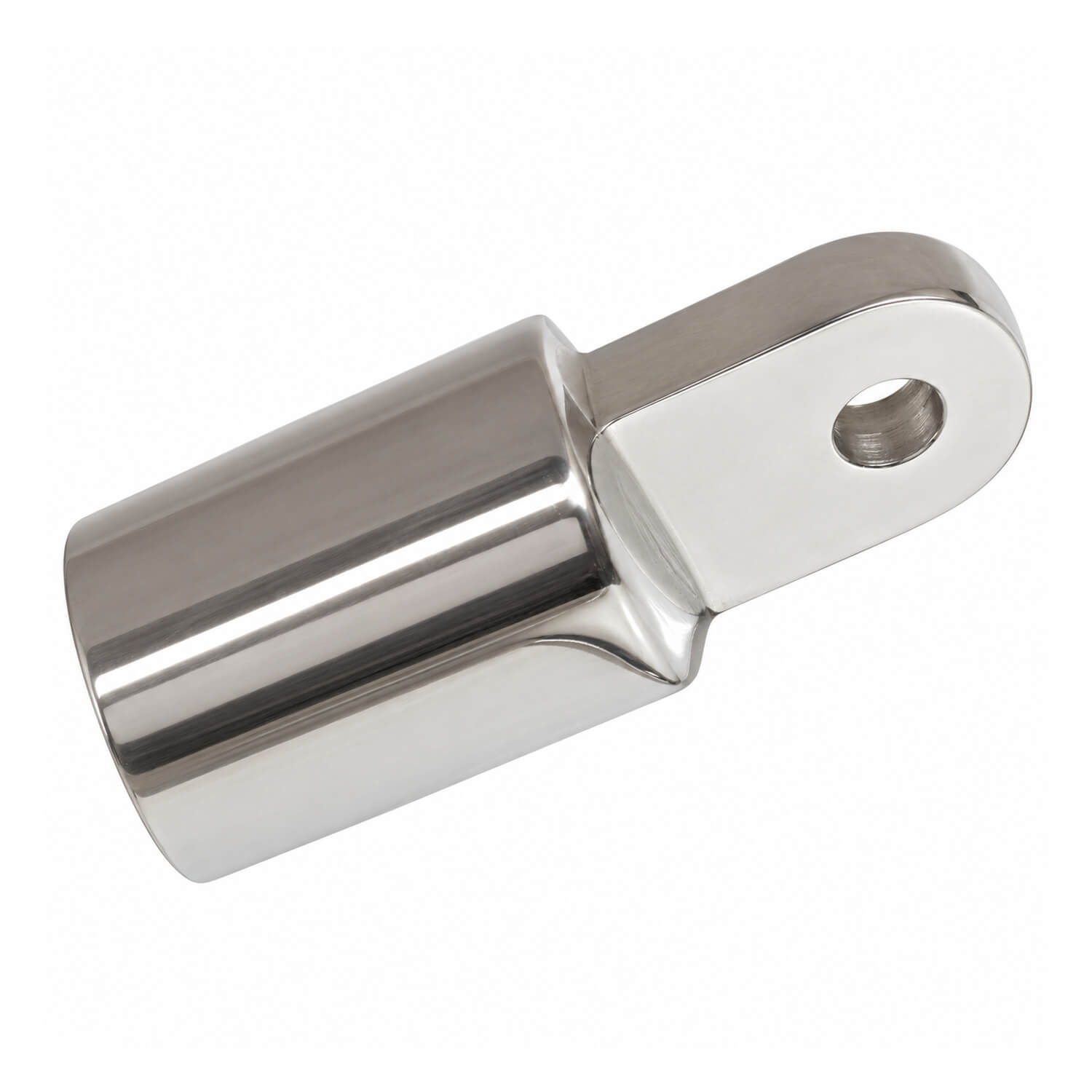

Stainless Canopy Tube End - 20mm Tube OD - 60 x 25mm
Heavy-duty mirror-polished cast 316 stainless steel canopy fitting. Fits over the outside of the tube.
Specifications and product details
Tube outside diameter: 20mm
Total size: 60 x 25mm
Product code: RWB1678
Build a canopy frame that fits correctly
Canopy fittings need to match the tubing and geometry of the existing frame. Compare the stated tube size and mounting style before selecting a replacement or planning an alteration. Pay particular attention to whether the fitting uses the tube inside or outside diameter, because those dimensions identify different connections.
Selection and fitting
Offer the frame components together before final fastening and check the canopy through its intended range of movement. The position and angle of each mount can affect alignment elsewhere in the assembly. Allow access to release pins or screws where fitted. Once assembled, check that adjoining parts are seated correctly and the mounting points remain secure. Include frame joints and fixings in routine inspections, especially after the canopy has been adjusted or removed.
Connection measurements are a key part of choosing this version. Check whether the specification refers to an inside diameter, outside diameter or a nominal connection size, then compare it with the adjoining component. Measuring the actual connection before ordering helps avoid a mismatch that may not be apparent from the outside appearance of the fitting.
For a refit, take measurements before removing the existing item and retain a note of its position and orientation. This gives you a useful reference when checking the replacement and helps keep related fittings aligned throughout the job.
Order Stainless Canopy Tube End - 20mm Tube OD - 60 x 25mm from RHS Boating & Marine using product code RWB1678. The specifications above identify the listed version, helping you compare it with the dimensions and equipment on your boat before placing your order.
