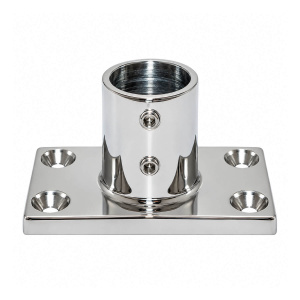

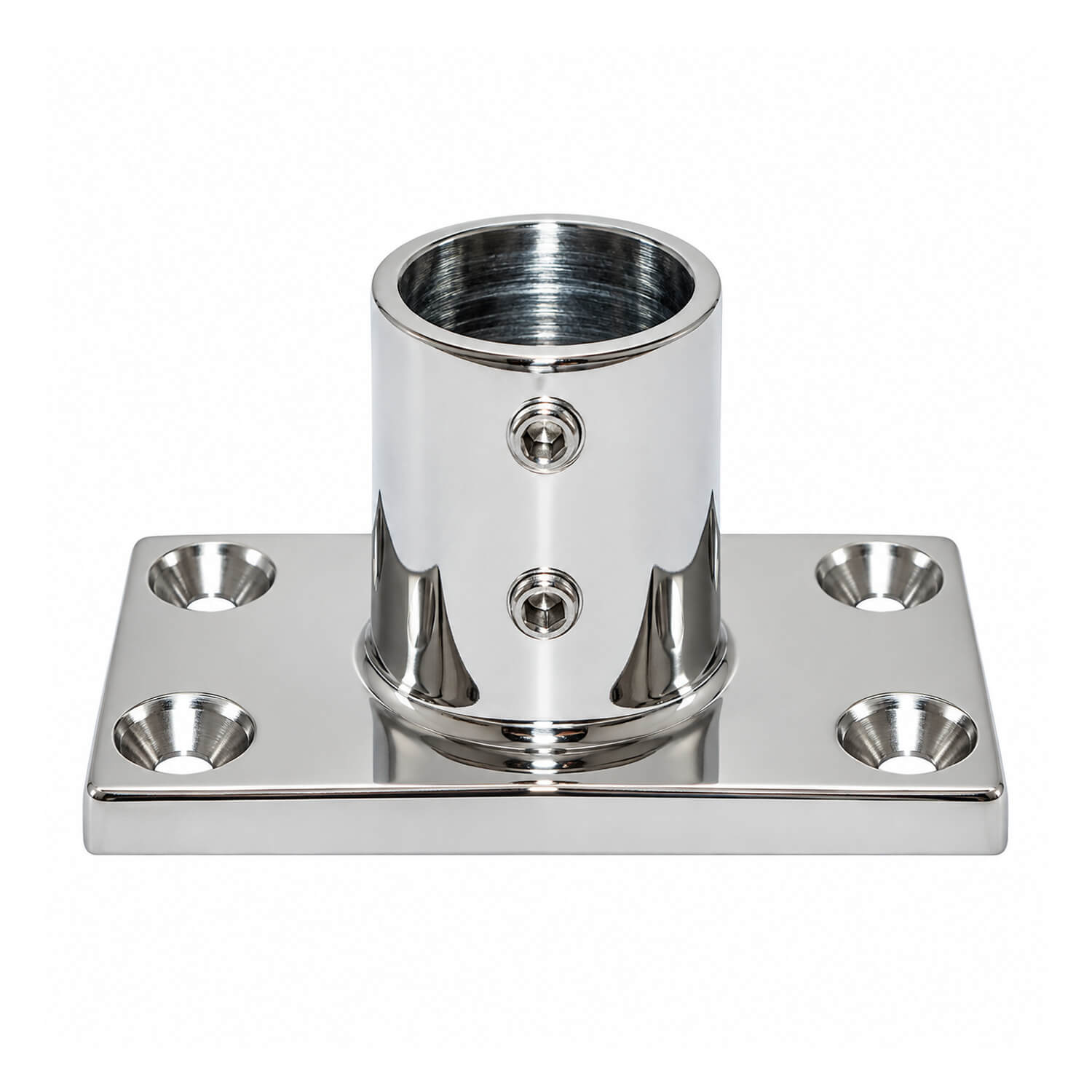

Cast 316 Stainless Rail Fitting - 90-degree rectangular base - 22mm Tube OD
Cast 316 stainless fitting for guard-rail systems. Tube fits internally and is retained by stainless grub screws. Bases are countersunk: 22mm fittings suit 5mm fastenings; 25mm fittings suit 6mm fastenings.
Specifications and product details
Type: 90-degree rectangular base
Tube outside diameter: 22mm
Product code: RWB1127
Plan the rail and mounting arrangement together
Grab rails and rail fittings should be selected as part of the surrounding installation. Compare the tube size, fitting angle and mounting footprint with the layout you want to achieve. Where a complete handle or rail is listed, check the overall length and fixing centres separately before marking the mounting surface.
Selection and fitting
Inspect the support behind each mounting point and allow enough space for the intended handhold or adjoining tube. Inside and outside tube diameters describe different interfaces, so use the measurement specified for this item. Check alignment before tightening the complete assembly. During routine maintenance, inspect the fixings, joints and surrounding surface for movement or wear. Keep the relevant part codes with your boat records when several matching fittings are used.
Connection measurements are a key part of choosing this version. Check whether the specification refers to an inside diameter, outside diameter or a nominal connection size, then compare it with the adjoining component. Measuring the actual connection before ordering helps avoid a mismatch that may not be apparent from the outside appearance of the fitting.
For a refit, take measurements before removing the existing item and retain a note of its position and orientation. This gives you a useful reference when checking the replacement and helps keep related fittings aligned throughout the job.
Order Cast 316 Stainless Rail Fitting - 90-degree rectangular base - 22mm Tube OD from RHS Boating & Marine using product code RWB1127. The specifications above identify the listed version, helping you compare it with the dimensions and equipment on your boat before placing your order.
