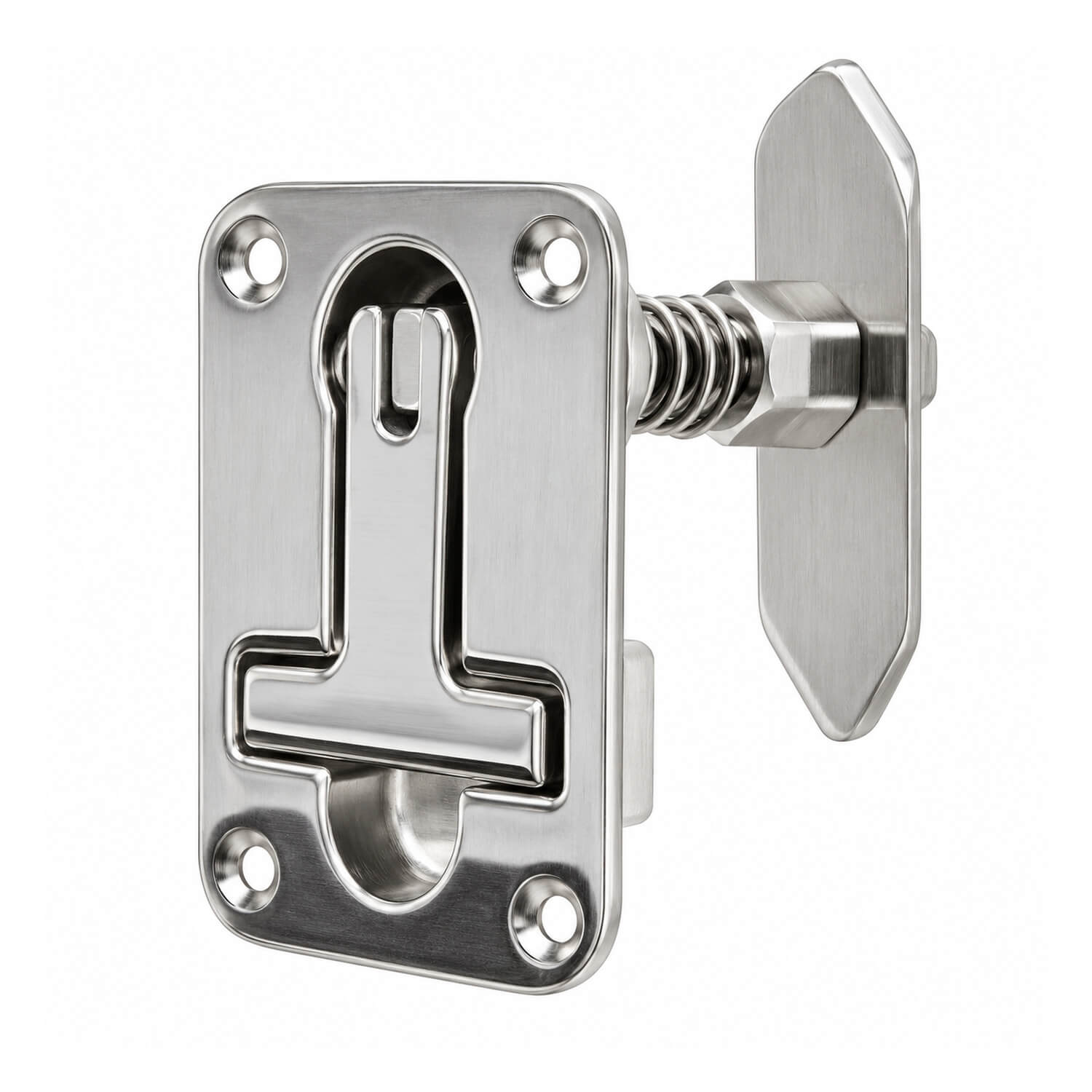

Heavy Duty Stainless Hatch Latch - Type A, top plate fastenings - 96 x 75mm
Cast 316 stainless steel floor-hatch latch with large twisting tee handle and spring-loaded camlock anti-rattle mechanism. Keeper plate supplied. Type B includes a below-deck fastening plate.
Specifications and product details
Mounting style: Type A, top plate fastenings
Outside size: 96 x 75mm
Cut-out: 83 x 67mm
Deck thickness: 33-55mm
Mounting holes: 4 x 5mm
Product code: RWB2897
A more usable cabin and locker layout
Door and hatch hardware works best when its operating position feels natural and the mating surfaces line up accurately. Use this fitting as part of a planned replacement or refit, comparing its size and operating style with the existing arrangement. A close match helps avoid unnecessary changes to surrounding joinery and makes everyday access more convenient.
Selection and fitting
Offer the components into position before drilling and check the door or lid through its complete movement. Allow space for fingers, nearby trim and any moving lever or handle. Where a mating catch or striker is involved, alignment matters as much as the mounting footprint. Check operation after tightening, then revisit the fixings during routine boat maintenance.
For an accurate fit, distinguish the cut-out measurement from the overall size. The cut-out describes the opening in the mounting surface, while the overall size describes the space occupied by the fitted frame or face. Compare both with your boat and check any stated depth, radius or thickness requirements before altering an existing opening.
For a refit, take measurements before removing the existing item and retain a note of its position and orientation. This gives you a useful reference when checking the replacement and helps keep related fittings aligned throughout the job.
Order Heavy Duty Stainless Hatch Latch - Type A, top plate fastenings - 96 x 75mm from RHS Boating & Marine using product code RWB2897. The specifications above identify the listed version, helping you compare it with the dimensions and equipment on your boat before placing your order.
